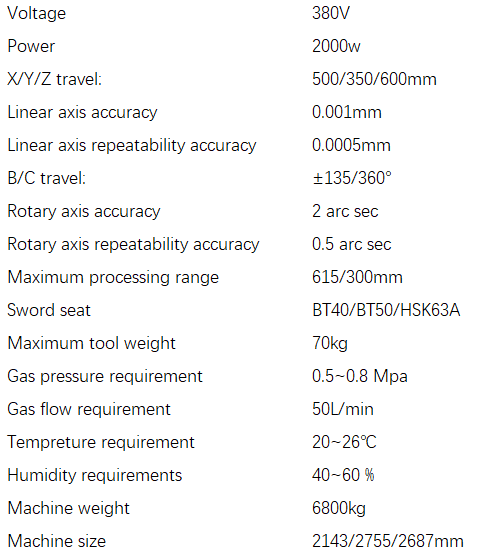

Parameters：
Processing range:
automotive tools, 3C molding tools, glass graphite tools, plastic knives, aviation tools, woodworking tools etc.

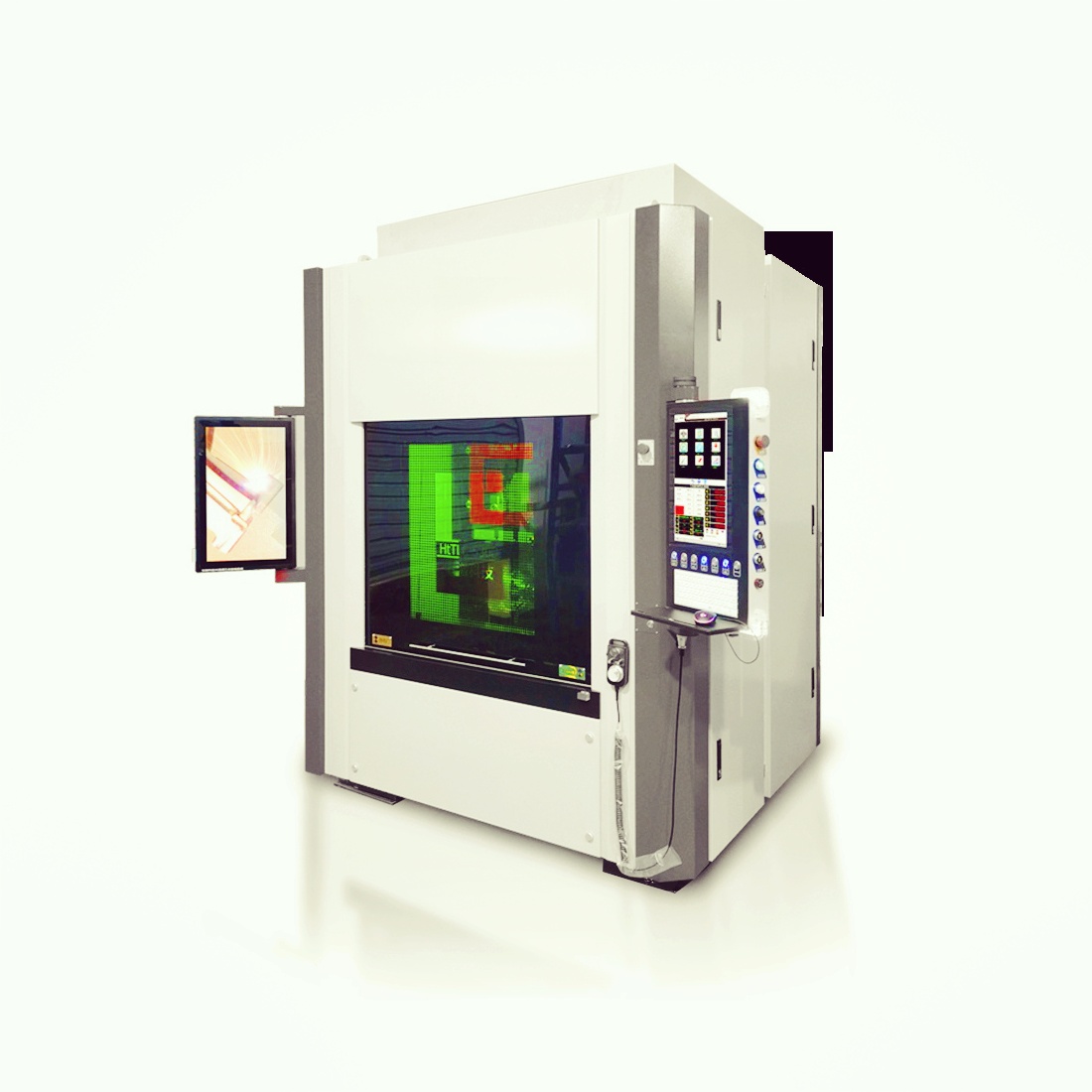

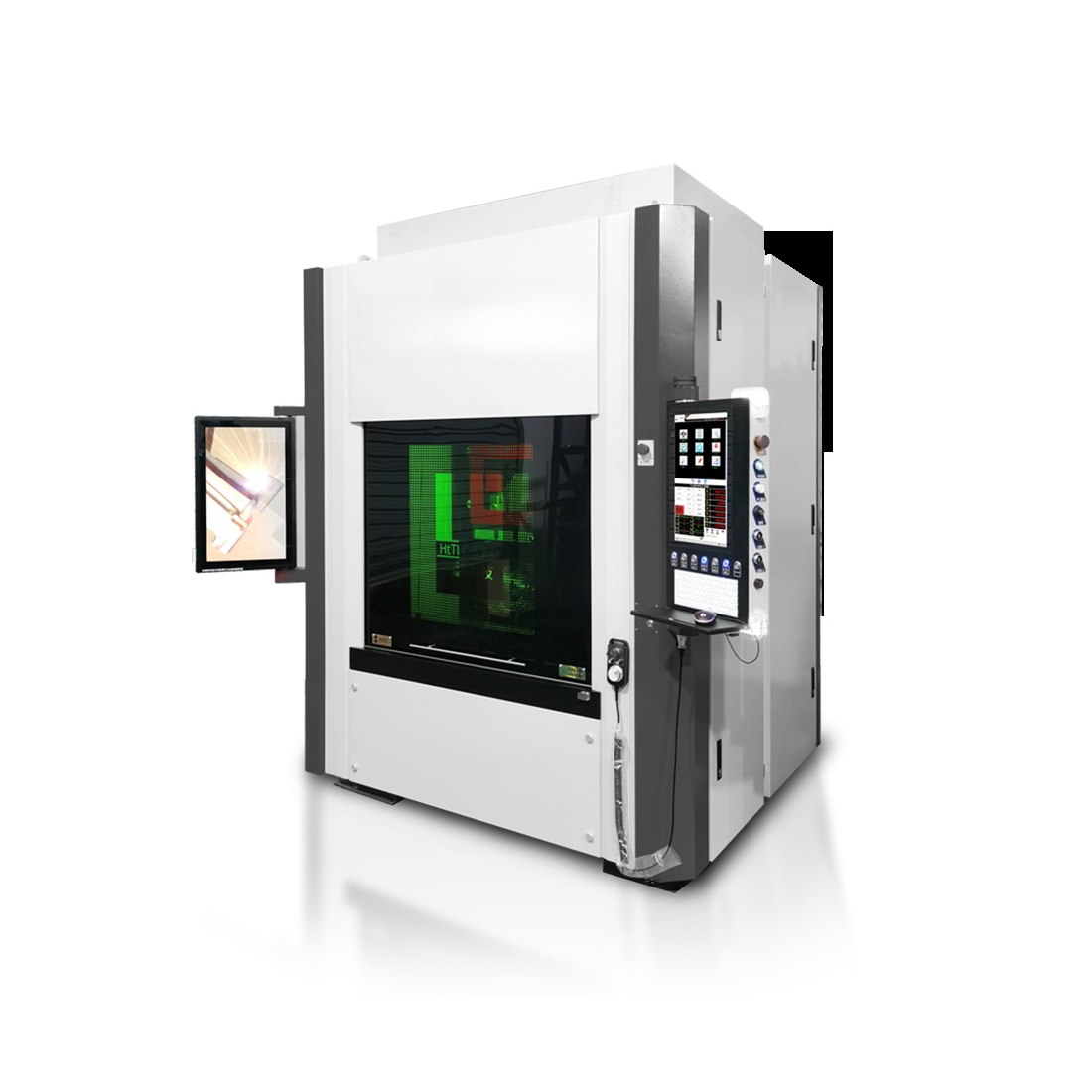

The machine is specified with a 380V power supply and 2000W power. Its X/Y/Z travel is 500/350/600 mm, with linear-axis accuracy of 0.001 mm and linear-axis repeatability accuracy of 0.0005 mm. The B/C axes provide ±135°/360° travel, with rotary-axis accuracy of 2 arc sec and rotary-axis repeatability of 0.5 arc sec.

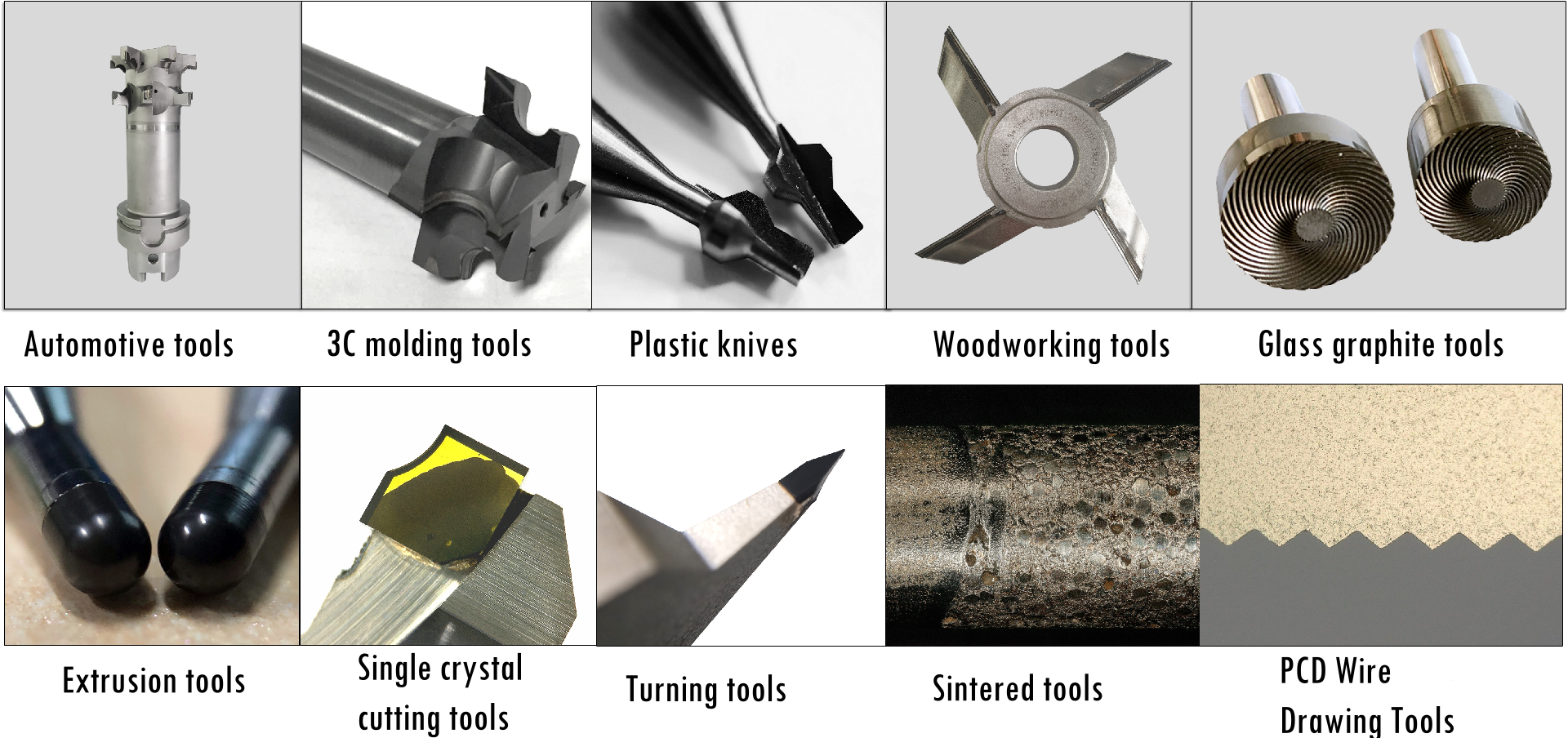

The listed processing range includes automotive tools, 3C molding tools, glass graphite tools, plastic knives, aviation tools, woodworking tools, extrusion tools, single-crystal cutting tools, turning tools, sintered tools and PCD wire drawing tools.
The published maximum processing range is 615/300 mm, and the machine supports a maximum tool weight of 70 kg. The machine is also specified with BT40, BT50 and HSK63A tool-holder interfaces.
The machine has a listed linear-axis accuracy of 0.001 mm and linear-axis repeatability accuracy of 0.0005 mm. Its rotary-axis accuracy is 2 arc sec, with rotary-axis repeatability accuracy of 0.5 arc sec. These specifications support precision machining of complex tool geometries.
The listed gas pressure requirement is 0.5–0.8 MPa, with a gas flow requirement of 50 L/min. The recommended temperature range is 20–26°C and the humidity requirement is 40–60%. The machine weighs approximately 6,800 kg and has listed dimensions of 2143/2755/2687 mm.
TKD states that its laser processing machines have been recognized in the European market and are also used in markets including North America, India and CIS countries. TKD's laser processing solutions cover industrial applications involving superhard-material and precision tool processing.
