Vacuum Welding Technology: The "Black Technology" Unleashing the Peak Performance of PCD Tools
— The Inevitable Process Revolution in the Precision Machining Industry by 2025
Under the global trend of manufacturing industry's transformation towards high precision and high efficiency, polycrystalline diamond (PCD) tools have become the "processing" in fields such as aerospace, new energy vehicles, and 3C electronics, thanks to their outstanding hardness (HV 8000+) and excellent wear resistance. However, the insufficient interface strength and thermal damage caused by traditional welding techniques have long restricted the performance ceiling of PCD tools. TKD vacuum welding technology, with its "zero oxidation + nanoscale bonding", has broken through the industry bottleneck, helping enterprises seize the commanding heights of the high-end manufacturing market！
I. Technical Advantages: Why Vacuum Welding is the Ultimate Choice for PCD Tools?
1. 150% Strength Enhancement: Quantum Leap in Interface Bonding
• Utilizing Ag-Cu-Ti active brazing filler metal, in a vacuum environment of ≤5×10⁻³Pa, titanium reacts with diamond to form a TiC transition layer (thickness ≤2μm), achieving an interface shear strength of 300-350MPa, far exceeding the 150MPa of traditional high-frequency welding.
• Case Study: After adopting this technology, the PCD milling cutter at a German Volkswagen parts factory achieved a cutting mileage of over 8,000 meters when processing carbon fiber composites, a 2.5-fold increase compared to the previous process.
2. 80% Reduction in Thermal Damage: From "Rough Welding" to "Precision Temperature Control"
• Through a gradient heating curve (heating rate ≤10℃/s) and a staged cooling system (pre-cooling to 500℃ before water quenching), the heat-affected zone (HAZ) is controlled to ≤50μm, preventing the graphitization of the diamond layer and the resulting hardness decline.
3. 99% Yield Rate: AI-Driven Process Revolution

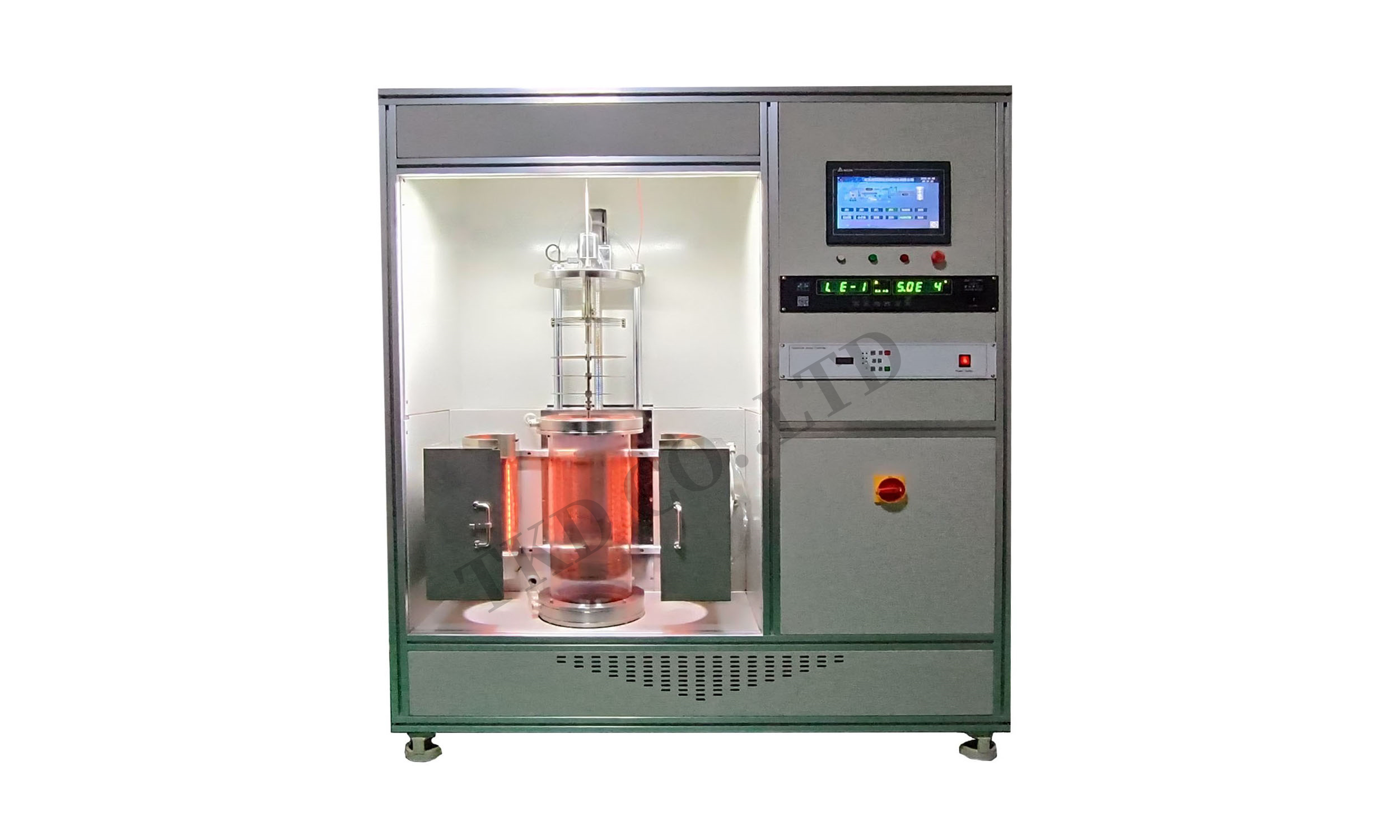

• Equipped with TKD's patented intelligent welding monitoring system, it can detect temperature fluctuations (accuracy ±1℃) and the flow state of the brazing filler metal in real time, automatically adjusting parameters, reducing the welding defect rate from the industry average of 8% to below 1%.
II. Application Scenarios: Which Industries Are Going Crazy for Vacuum Welded PCD Tools?
1. Aerospace: Efficient Processing of Aluminum Alloy Skins
• Vacuum welded PCD end mills achieve an ultra-high cutting speed of 4000m/min when processing 7075-T651 aluminum alloy, with a surface roughness of Ra ≤ 0.4μm, reducing the processing cycle of Airbus A320 fuselage components by 30%.
2. New Energy Vehicles: Precision Processing of Carbon Fiber Battery Box Bodies
• Chinese battery giant CATL uses 12mm diameter PCD drills, and vacuum welding technology ensures that the edge blunting accuracy reaches R0.02mm, achieving zero delamination in carbon fiber laminates drilling and reducing the scrap rate by 90%.
3. 3C Electronics: Polishing Grade Processing of Titanium Alloy Phone Frames
• In the processing of titanium alloy (Ti-6Al-4V) phone frames, vacuum welded PCD ball end mills extend tool life to 12,000 pieces per edge, reducing processing costs by 40%, and have become an Apple supply chain certified technology.
III. Technological Breakthroughs: How TKD Redefines the Standard of Vacuum Welding?
1. Global First: Dual Metal Transition Layer Technology
• By adding a Ni/W composite interlayer (50μm thick) between PCD and the steel substrate, the coefficient of thermal expansion matching is improved by 70%, solving the problem of cracking in large-sized tools (diameter > 50mm) during welding.
2. Green Manufacturing: Comprehensive Innovation from Consumables to Energy Consumption
• Development of cadmium-free solder (Zn-Al-Mg-Ti series), reducing the welding temperature to 750℃, and cutting carbon emissions by 35%; equipment energy consumption is reduced by 50% compared to traditional vacuum furnaces, saving over ￥120,000 in electricity costs per unit annually.
3. Mature Welding Service Ecosystem
• The system is equipped with mature welding processes and supports online welding simulation.
IV. Customer Testimonials: The Choice of Over 300 Enterprises
• Case 1: A Japanese aviation parts supplier
Original process: High-frequency welded PCD tools were used to process Inconel 718 high-temperature alloy, with a tool life of only 200 pieces and a cost of ¥32 per piece.
After upgrade: The tool life of vacuum welded tools increased to 600 pieces, and the cost dropped to ¥18 per piece, saving ¥5.4 million annually.
• Case 2: A leading 3C electronics contract manufacturer in Shenzhen
Requirement: Milling of 0.3mm ultra-thin titanium alloy frames, with a tool chipping rate of ≤0.1%.
Result: Vacuum welded PCD tools achieved continuous processing of 1 million pieces without chipping, winning the Huawei Annual Core Supplier Award.
