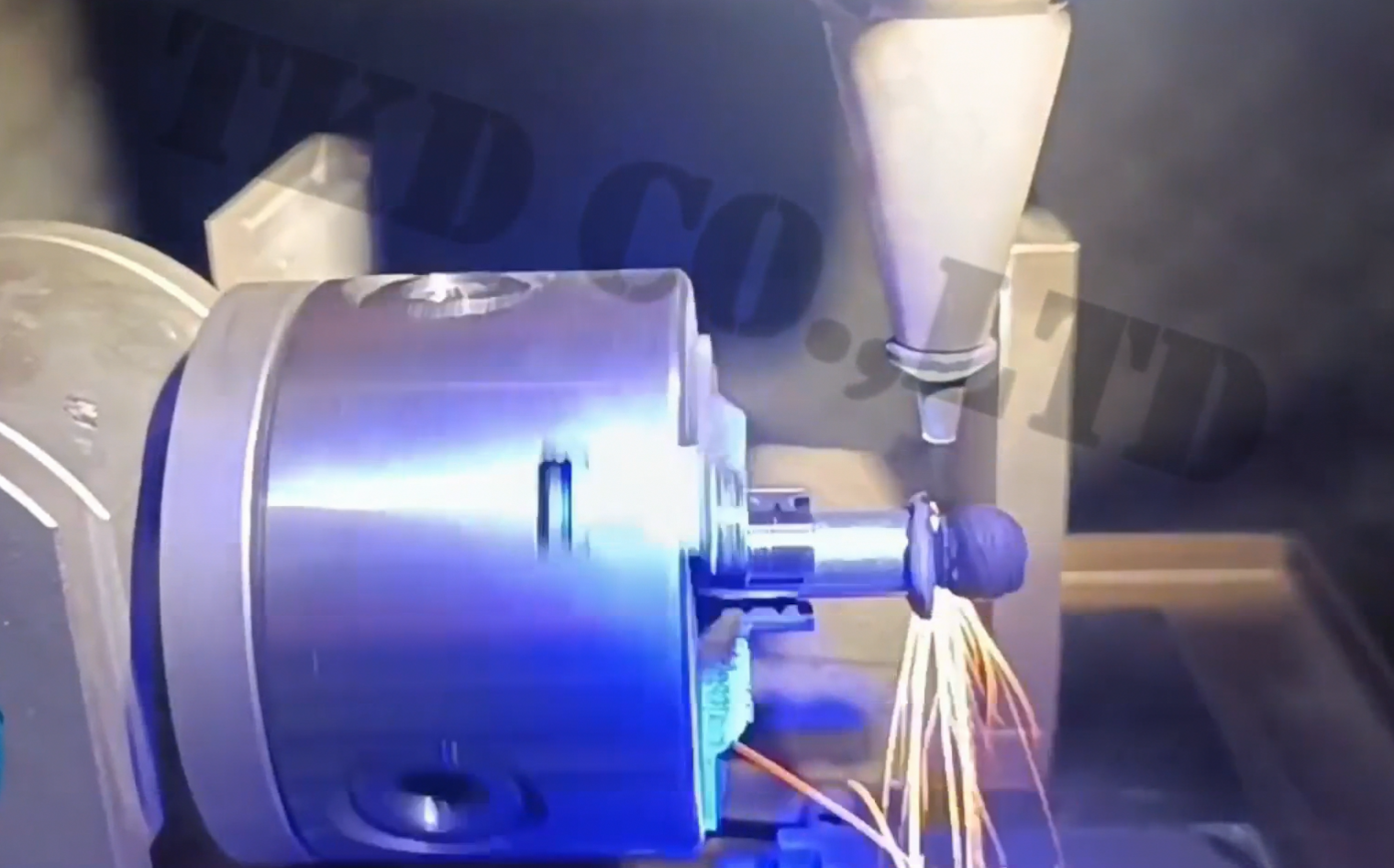

To address the machining challenges posed by the high hardness and brittleness of ceramic materials such as silicon nitride (Si₃N₄), zirconia (ZrO₂), and alumina (Al₂O₃), our company has developed an integrated solution leveraging ultrafast laser technology and five-axis linkage precision control. This solution enables efficient transformation of ceramic cylinders into high-precision spherical components. Below is a systematic elaboration of its technical principles, core advantages, and industrial applications:
I. Technical Principles and Workflow
1.Ultrafast Laser Processing Mechanism
•Utilizes femtosecond/picosecond pulsed lasers (wavelength: 1064 nm/532 nm) with ultra-short pulses (<1 ps) and high energy density (10–50 mJ) to achieve cold cutting of ceramics.
•Minimizes thermal diffusion effects, preventing grain boundary fractures in Si₃N₄ and phase-transition-induced cracking in ZrO₂.
2.Five-Axis Precision Control
•Implements 3D spiral layered cutting combined with adaptive focal tracking to dynamically compensate for clamping deviations (<2 μm).
•Ensures spherical roundness error <0.1 μm across a full size range of φ0.5–50 mm.
II. Core Innovations and Advantages
1.Minimal Heat-Affected Zone (HAZ)
•Femtosecond laser pulses with nitrogen shielding reduce HAZ thickness to <5 μm, preserving intrinsic material properties (e.g., Si₃N₄ fatigue resistance, ZrO₂ corrosion resistance).
•Layered cutting strategy (single-pass depth <10 μm) lowers thermal accumulation by 60%, mitigating microcrack propagation.
2.Integrated Complex Structure Fabrication
•Porosity Engineering: Laser-etched directional pores (diameter ≥20 μm, porosity 30–70%) on YSZ surfaces meet electrolyte support requirements for solid oxide fuel cells.
•Custom Geometry: Enables asymmetric shapes (e.g., ellipsoids, polyhedrons) and surface microchannels (width 20 μm) to enhance catalytic reaction efficiency.
3.Material Efficiency and Post-Processing Optimization
•Near-net forming of ceramic cylinders improves material utilization to 40% (vs. 15% in traditional methods), reducing raw material costs.
•Magnetorheological polishing achieves bearing-grade surface roughness (Ra <0.01 μm), minimizing secondary machining time.
III. Key Application Scenarios
1.Aerospace High-Precision Bearings
•φ1 mm Si₃N₄ balls for satellite momentum wheels withstand extreme temperatures (-180°C to 300°C) with 3x extended lifespan.
2.Custom Medical Implants
•Patient-specific ZrO₂ joint heads (CT data-driven curvature design) achieve ISO 21534 biocompatibility standards post-polishing.
3.Energy and Environmental Solutions
•Porous YSZ balls enhance hydrogen fuel cell electrolyte layers (20% higher ionic conductivity).
•Al₂O₃ grinding balls enable nanoscale lithium battery cathode materials (particle size <100 nm).
IV. Value Proposition
This solution overcomes the limitations of conventional dry/isostatic pressing (e.g., mold dependency), enabling small-batch, high-customization, and complex-structured ceramic ball production with 30% shorter cycles and >98% yield. It is particularly suited for industries demanding stringent material performance and precision, including aerospace, biomedical, and clean energy, driving the intelligent and precision-oriented evolution of ceramic manufacturing.
